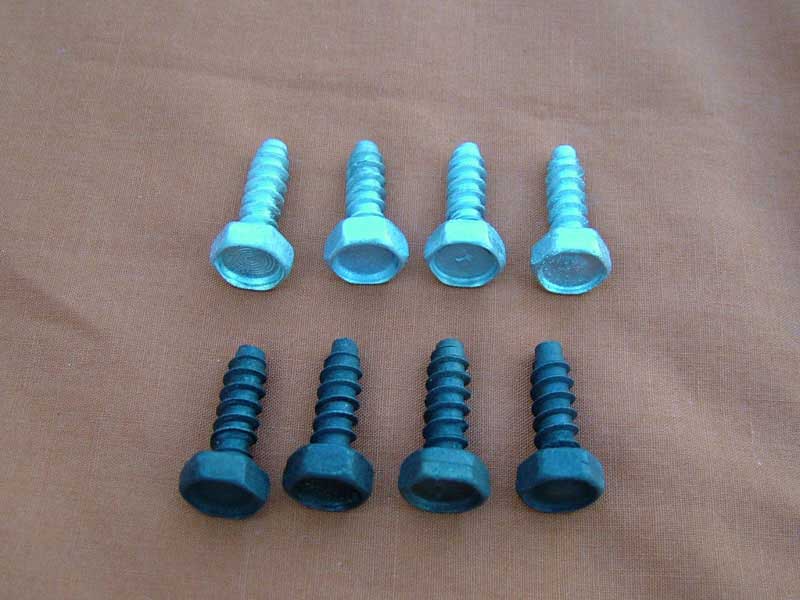

As you can tell from past pictures I used only original hardware, so pictured below are samples
of the original mounting hardware to assemble the front end sheet metal. A lot of research went
into making sure the correct colored finish bolts were installed in the right areas, that is why
you see two different colored finishes of screws.

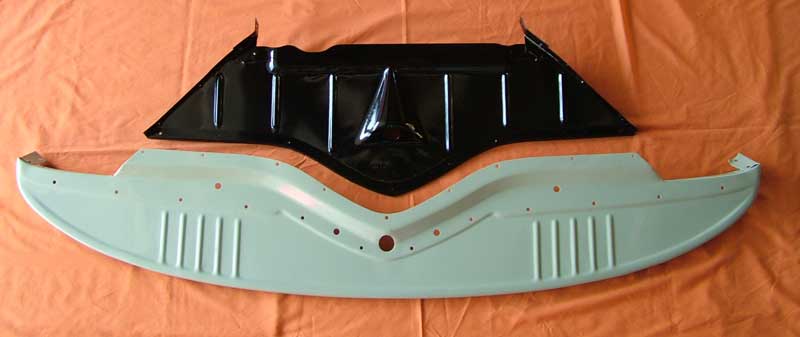

The two front splash pans were painted separately in there correct colors
and then riveted together as original
