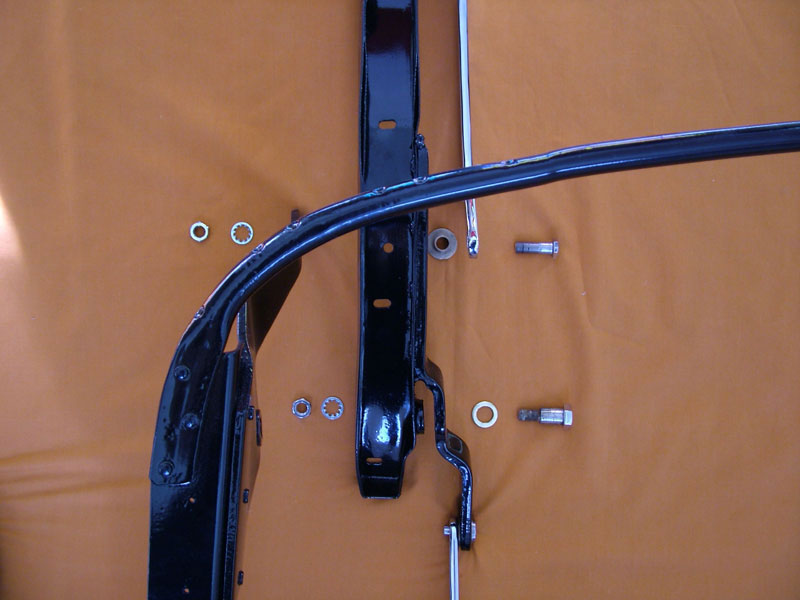

Shown below is the side rail assembly (shown in page 24) and the rear main bow
with its attaching hardware. Two connection need to be made here, the middle side
rail to rear main bow and chrome link to rear main bow
