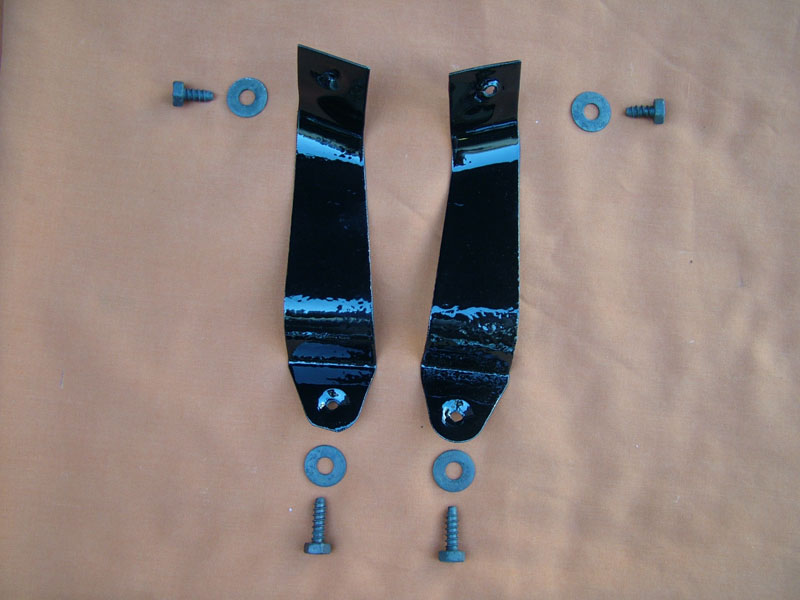

This picture show the main brackets to mount the fenders to the radiator core support.

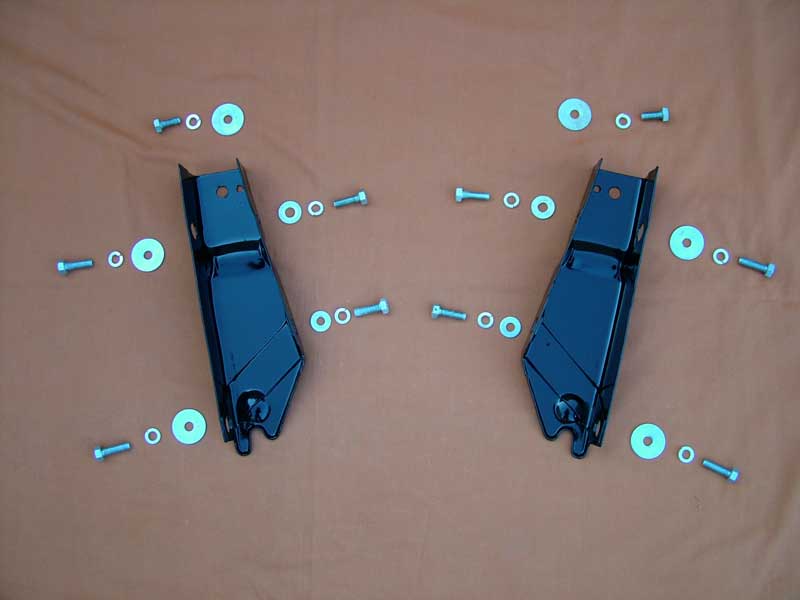

The next picture shows brackets that mount the rear of the front fender to the body

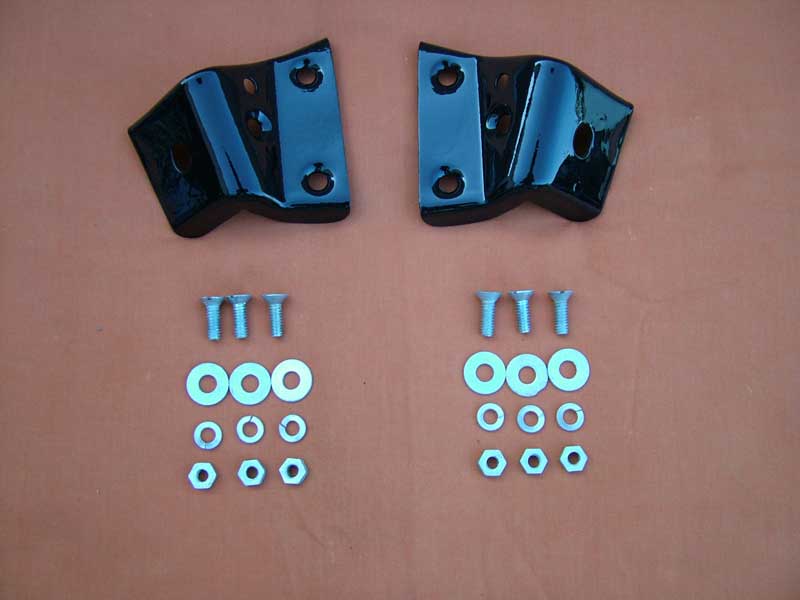

and the last picture shows the filler pieces between body and brackets to the right.
